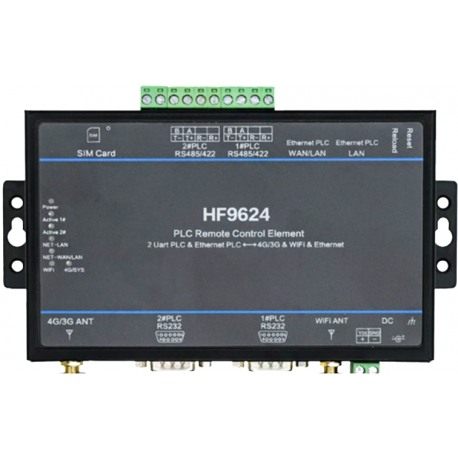

• Product Code: HF9624
Buy Online

Overview of Characteristic

  • MIPS MCU with 16MB Flash and 64MB SRAM. Run with Linux OpenWrt
  • Support 4G/3G/GPRS, FDD-LTE, TDD-LTE, WCDMA, TD-SCDMA, CDMA2000, CDMA 1X/EVDO, GSM900/1800
  • Support Virtual COM, Virtual Path Connect to PLC for Remote Monitor
  • Two RS232/RS485/RS422 interface to 4G/3G/2G
  • Two Ethernet to 4G/3G/GPRS
  • Support 802.11bgn Wi-Fi to 4G/3G/GPRS
  • Support APN network
  • Support VPN(PPTP, L2TP, L2TP+IPSEC)
  • Support TCP/IP/Telnet/Modbus TCP Protocol, support TLS/AES/DES3 enrtyption
  • Support Router or Bridge Network Working Mode.
  • Support 10/100M Ethernet Auto-Negotiation
  • Support Easy Configuration Through a Web Interface or PC IOTService Tool locally or remotely
  • Support IOTBridge Management
  • Support Web OTA Wirelss Upgrade
  • Support Wide DC Input 9~36VDC
  • Size: 178mm x 95mm x 26mm
Basic Frequency 580MHz
Flash 16MB
Operating System Linux OpenWrt
Interface Standard RS232: DB9 RS485/RS422: 5.08mm connector Support one type of RS232/RS422/RS485 at the same time
Protection Anti-reverse Power Static: 8KV Contact Discharge, 15KV Air Discharge Surge: Difference-mode 4KV, Common-mode 6KV
Transmit Power Class 4(33dBm±2dB) for GSM900 Class 1(30dBm±2dB) for DCS1800 Class E2(27dBm±3dB) for GSM900 8-PSK Class E2(26dBm±3dB) for DCS1800 8-PSK Class 3(24dBm+3/-1dB) for CDMA BC0 Class 3(24dBm+1/-3dB) for WCDMA Class 2(24dBm+1/-3dB) for TD-SCDMA Class 3(23dBm±2dB) for LTE FDD Class 3(23dBm±2dB) for LTE FDD
Receive Sensitivity Wi-Fi: 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Port Number 2 RJ45 1 WAN/LAN switchable 1 LAN
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL:300 bps~230400 bps
Flow Control No Flow control Hardware RTS/CTS、DSR/DTR(RS232) Software Xon/ Xoff flow control
Size 178mm x 95mm x 26mm
Input Voltage 5~36VDC
Warranty 1 year
Resource-RAM 64MB RAM
Work Temp. -25 ~ 85°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
User Guide
IOT_Device_Series_Software_Funtion_20200623 [ Download Times: 45010,  Date Update: 2020-06-23 18:28:00 ]
HF9624 User ManualV1.0(20190626) [ Download Times: 2580,  Date Update: 2019-06-28 18:15:53 ]
12_PLC Application_20191104 [ Download Times: 3820,  Date Update: 2019-11-04 10:32:34 ]
