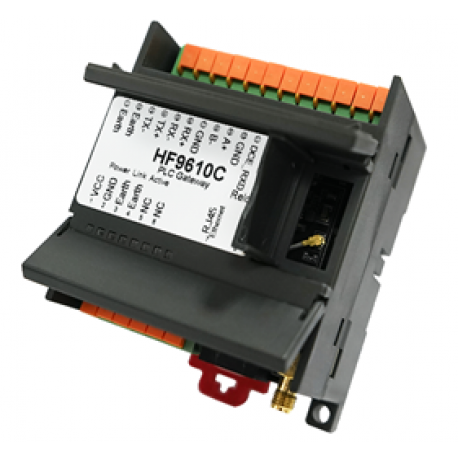

HF9610C

  • Product Code: HF9610C
Buy Online

Overview of Characteristic

  • MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
  • Support Virtual COM, Virtual Path Connect to PLC for Remote Monitor
  • Support TCP/IP/Telnet /Modbus TCP Protocol
  • Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 230400 bps
  • Support STA/AP/AP+STA Mode
  • Support Router or Bridge Network Working Mode.
  • Support 10/100M Ethernet Auto-Negotiation
  • Support Easy Configuration Through a Web Interface or PC IOTService Tool
  • Support Security Protocol Such As TLS/AES/DES3
  • Support  Web OTA Wirelss Upgrade
  • Wide DC Input 5~36VDC
  • Size: 71.2mm x 96mm x 63mm
Frequency Range 2.412GHz-2.484GHz
Receiver Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Basic Frequency 320MHz
Flash 4MB
SDRAM 8MB
Operating System eCos
Interface Standard RS232: DB9 RS485/RS422: 5.08mm connector Support one channel of RS232/RS422/RS485
Rate 10/100M
Protection 8KV Isolation
Network Protocol IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet，uPNP， NTP，Modbus TCP
Security Protocol TLS v1.2 AES 128Bit DES3
Standard 802.11 b/g/n
Network Mode STA/AP/STA+AP
Transmit Power 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.)
Antenna Interface 3dBi Stick Antenna
Port Number 1 WAN/LAN switchable
Data Bits 8
Stop Bit 1,2
Check Bit None，Even，Odd
Baud Rate TTL: 300 bps~230400bps
Flow Control No Flow Control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoff flow control
Size 71.2mm x 96mm x 63mm
Input Voltage 5～36VDC
Working Current ~200mA
Power <700mW
Warranty 1 year
Accessory 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna
Work Temp. -25 ~ 85°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH（no condensation）
