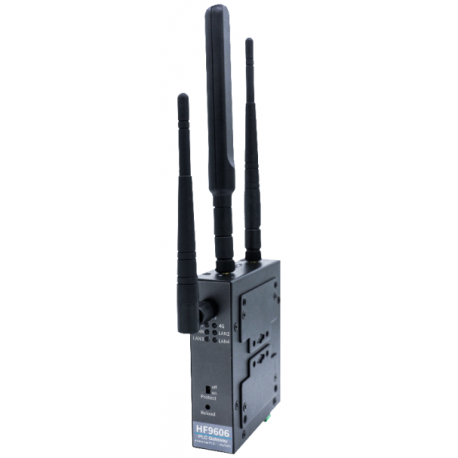

★HF9606
- Product Code: HF9606
Product Overview
HF9606 provides a router function for PLC management and monitoring, supporting protocol conversion between Ethernet, Wi Fi, 4G/3G/GPRS. This product is based on the Linux operating system and includes web pages. The hardware interface meets the national standard requirements.
Product Features
- Based on Linux OpenWrt system, MIPS architecture, 16MB Flash, 64MB RAM
- Support virtual network card
- Support VPN virtual private network, port mapping
- Support 4-channel Ethernet 10/100M self negotiation
- Support 802.11bgn Wi Fi, Wi Fi in AP/STA/AP+STA mode
- Support webpage mode and PC software IOTService configuration
- Support web OTA wireless upgrade
- HF9606 supports 4G/3G/GPRS networks, FDD-LTE、TDD-LTE、WCDMA、TD-SCDMA、CDMA2000、 CDMA 1X/EVDO、GSM900/1800
- Wide voltage 9-36VDC power supply
- Size: 108x30x120mm
| Frequency Range | 2.412GHz-2.484GHz |
| Receiver Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Basic Frequency | 580MHz |
| Flash | 16MB |
| SDRAM | 64MB |
| Operating System | Linux OpenWrt |
| Interface Standard | 10/100M Base-T 自动协商 |
| Protection | 8KV Isolation |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet，uPNP， NTP |
| Security Protocol | TLS v1.2 AES 128Bit DES3 |
| Standard | 802.11 b/g/n |
| Network Mode | STA/AP/STA+AP |
| Transmit Power | 802.11b: +20dBm (Max.) 802.11g: +18dBm (Max.) 802.11n: +15dBm (Max.) |
| Antenna Interface | 3dBi Stick Antenna |
| Port Number | 4 x RJ45 1个WAN/LAN 3个LAN |
| Configuration | Web Cli XML Telnet IOTService IOTBridge |
| Size | 108mmx30mmx120mm |
| Input Voltage | 9～36VDC |
| Working Current | ~300mA |
| Warranty | 1 year |
| Accessory | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna |
| Work Temp. | -25 ~ 85°C |
| Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH（no condensation） |
