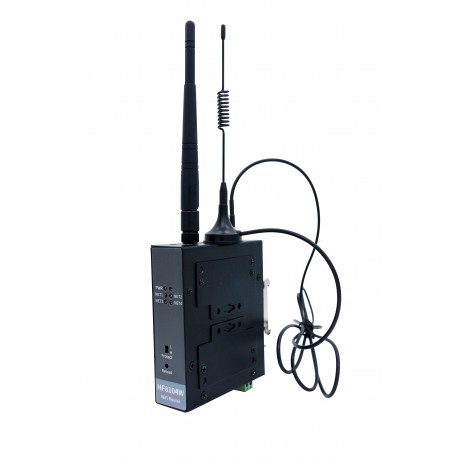

HF8104W

  • Product Code: HF8104W
Buy Online

Overview of Characteristic

²  MIPS MCU with 8MB Flash and 64MB SRAM. Run on Linux

²  Support 802.11bgn Wi-Fi AP Mode

²  Support 10/100M Ethernet Auto-Negotiation, 3 LAN port and 1 LAN/WAN port

²  Support Easy Configuration Through a Web Interface or PC IOTService Tool

²  Support  Web OTA Wirelss Upgrade

²  Wide DC Input 9~36VDC

²  Size: 108mm x 30mm x 120mm

Wireless Standard 802.11 b/g/n
Frequency Range 2.412GHz-2.484GHz
Network Mode AP
Transmit Power 802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Processor/Frequency MIPS/320MHz
Flash/SDRAM 4MB/8MB
Operating System Linux
Protection Static electricity: 8KV contact discharge, 15KV air discharge Surge: differential mode 4KV, common mode 6KV
Security Protocol TLS v1.2 AES 128Bit DES3
Port Number 4RJ45
User Guide
HF8104W User ManuaV1.1(20181029) [ Download Times: 1096,  Date Update: 2020-11-10 10:40:20 ]
