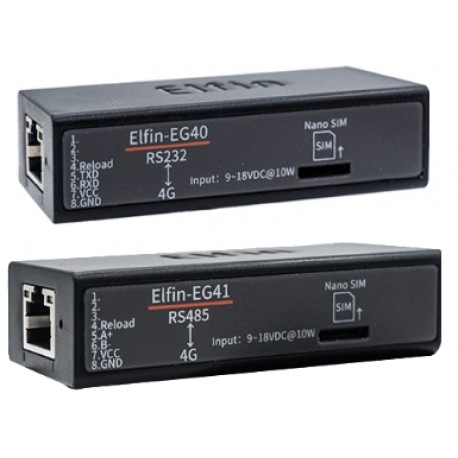

• Product Code: Elfin-EG41
Buy Online

The Elfin-EG4X support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network full network. 4G network support maximum download data rate 150Mbps, upload data rate 50Mbps.

Overview of Characteristic

  • Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network
  • Support RS232/RS485 to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps
  • Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache
  • Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
  • Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
  • Support SMS AT Command Configuration
  • Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.
  • Support NTP
  • Support Modbus TCP to Modbus RTU
  • Support IOTBridge for Remote Control and Config.
  • Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow charge.
  • Support Serial Port, Network OTA Upgrade Firmware.
  • Size: 68.5 x 35 x 17.8mm
  • 9~18VDC@1A Wide Power Supply
User Guide
4G_2G_NB DTU Products Functions _V2.0_20200219 [ Download Times: 6754,  Date Update: 2020-02-19 19:19:06 ]
4G_2G_NB Products Operation Guide_20200424 [ Download Times: 7756,  Date Update: 2020-04-26 09:13:55 ]
Elfin-EG41 User Manual V1.4(20211118) [ Download Times: 686,  Date Update: 2021-11-18 20:22:40 ]
