MTRS1-6S485P
- Product Code: MTRS1-6S485P
Module overview

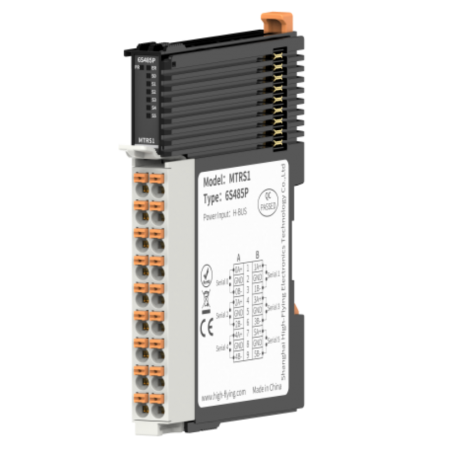

Ø MTRS1-6S485P is a new generation of serial port acquisition and control module launched by Hanfeng. It adopts an extended structure design, flexible matching,
and self-developed Hanfeng H-BUS backplane bus. With high-speed acquisition protocol, it quickly realizes backplane module recognition and automatic configuration matching.
The product is compact in size, with guide rail installation, saving space.
Ø MTRS1-6S485P is a 6-channel RS485 serial port Push In terminal connector expansion module, and the width after splicing is only 12mm.
Ø Simple and practical, with rich indicator lights, the device status can be determined at a glance.
| Installation mode | DIN35mm rail mounting |
| Serial | 6: RS485 |
| Bus input power rated voltage | 9VDC（8.55VDC～9.45VDC） |
| Class of protection | IP20 |
| Connection mode | screw-free |
| Firmware upgrade function | support |
| Net product weight | ＜80g |
| Overall dimension | 14.5*83.94*111.5mmL*W*H） |
| Wiring specification | 0.2～1.5mm² |
| Altitude | Below 2000 m (80kPa) |
| atmosphere | Ensure no corrosive gases |
| Operating temperature | -30°C~70°C |
| Pollution level | Level 2 |
| Protective measure | Fast group pulse EFT Electrostatic discharge ESD EMC anti-interference level SURGE Vibration resistance Impact resistance |
| Working humidity | Relative humidity less than 95%RH No condensation |
| Radiated Disturbance Electromagnetic Field | FCC(1GHz~3GHz) FCC RE QP (30MHz~1GHz)Hz) |
