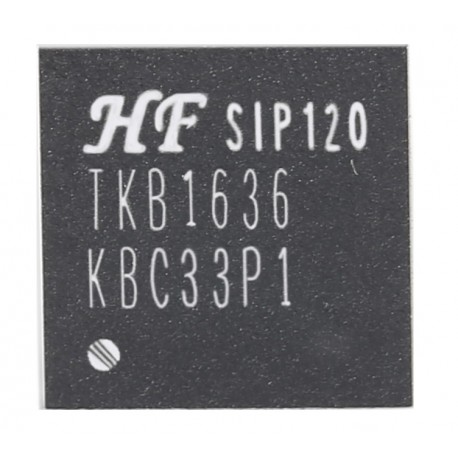

HF-SIP120

  • Product Code: SIP120
Buy Online

Overview of Characteristic
l  802.11 b/g/n/e/i/d
l  AP/STA mode, Soft-AP
l  802.11b, 11g, and 802.11n 1T1R
l  Short Guard Interval
l  Greenfield mode
l  RIFS in RX mode
l  STBC in RX mode
l  Embedded all matching and bypass components
l  Embedded26MHz crystal.
l  Embedded 16Mbit flash.
l  Support All Current HF-LPB120 Function


Class

Item

Parameters

Wireless Parameters

Wireless standard

802.11 b/g/n

Frequency range

2.412GHz-2.484GHz

Transmit Power

802.11b: +16 +/-2dBm (@11Mbps)

802.11g: +14 +/-2dBm (@54Mbps)

802.11n: +13 +/-2dBm (@HT20, MCS7)

ReceiverSensitivity

802.11b: -93 dBm (@11Mbps ,CCK)

802.11g: -85 dBm (@54Mbps, OFDM)

802.11n: -82 dBm (@HT20, MCS7)







Hardware

Parameters

Data Interface

UART

GPIO

Operating Voltage

2.95~3.6V

Operating Current

Average. ~30mA, Peak: 280mA

Operating Temp.

-20℃- 85℃

StorageTemp.

-40℃- 125℃

Dimensions and Size

6mm×6mm BGA package

Software Parameters

Network Type

STA /AP

Security Mechanisms

WEP/WPA-PSK/WPA2-PSK

Encryption

WEP64/WEP128/TKIP/AES

Update Firmware

Local Wireless, Remote

Customization

Support SDK for application develop

Network Protocol

IPv4, TCP/UDP/HTTP

User Configuration

AT+instruction set. Android/ iOS

Smart Link APP tools

The usage is the same as HF-LPB120 module




HF-SIP120

HF-SIP120 order information.


Production Data 2016/Q4
Key Feature Low Power SDK Support SmartLink Config Small Size Lowest Price Zero External
Processor ARM7
Basic Frequency 96MHz
Operating System Contiki
Wi-Fi Standard 802.11bgn
Temp. Range -20~+85
Size (mm) 6mm×6mm BGA package
Package Type BGA package
Work Voltage 2.95~3.6V
Current @No data ~30mA
Current @Tx Peak ~280mA
Interface-UART
Interface-GPIO
AP Mode
STA Mode
OTA Upgrade
Smart Configure SmartLink V7.X APP
Airkiss Configure
SDK Support
Applications
HF-SIP120 Reference Design [ Download Times: 208,  Date Update: 2017-04-01 16:20:51 ]
User Guide
HF-SIP120 Data Sheet [ Download Times: 322,  Date Update: 2016-11-18 10:59:32 ]
