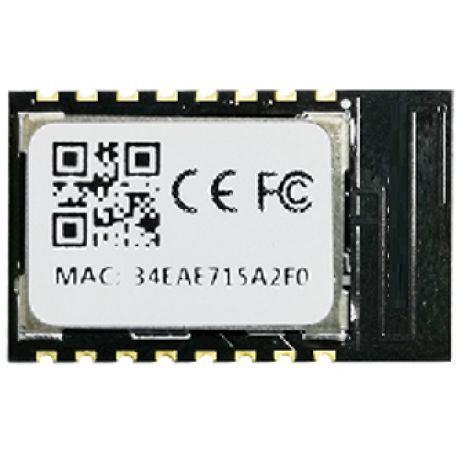

★HF-LPT6200
- Product Code: UART to Wi-Fi [LPT6200]
Overview of Characteristic
²Support 2.4G Wi-Fi6 IEEE802.11b/g/n/ax and BLE5.1 Wireless Standards
²Based on Andes RISC SOC, 240MHz CPU, 512KB RAM, 2MB Flash
²Support UART Data Communication with Wi-Fi or BLE
²Support Wi-Fi STA/AP/AP+STA Mode
²Support BLE SmartBLELink Config
²Support Wi-Fi AP SmartAPLink
²Support Wireless and Remote Firmware Upgrade Function
²Support Software SDK for Develop
²Support Different Antenna Option
nHF-LPT6200: Internal PCB or External 1st IPEX or Antenna Pad Out
nHF-LPT6210: Internal PCB or External 1st IPEX
nHF-LPT6220: Internal PCB or External 1st IPEX
²Single +3.3V Power Supply
²Size:
nHF-LPT6200: 22.5±0.2mm x 13.5±0.2mm x 3.5±0.2mm, SMT18 package
nHF-LPT6210: 22±0.3mm x 15.6±0.3mm x 8±0.5mm, DIP10 package
nHF-LPT6220:30±0.3mm x 17.7±0.3mm x 3.6±0.2mm,SMT14封装
Wireless Standard | 802.11 b/g/n/ax BLE5.1 |
StorageTemp. | -40℃- 125℃ |
Processor | Andes RISC |
Basic Frequency | 240MHz |
Temp. Range | -40℃- 105℃ |
Internal Antenna | √ |
I-PEX Connector | √ |
Size (mm) | 22.5±0.2mm x 13.5±0.2mm x 3.5±0.2mm |
Work Voltage | 3~3.6V |
Current @No data | 17mA |
Current @Tx Peak | <350mA |
Resource-Flash | 2MB |
Resource-RAM | 512KB |
