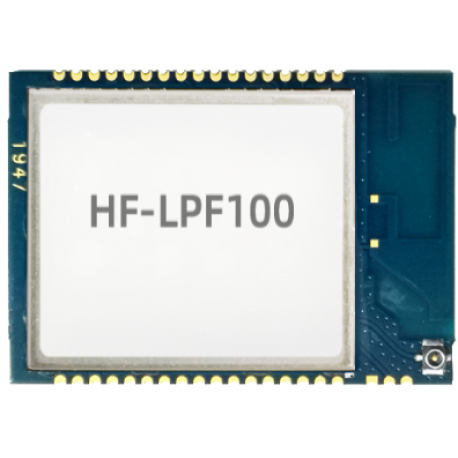

HF-LPF100

  • Product Code: HF-LPF100
Buy Online

Features

  • Support Wi-Fi 802.11 a / b / g / n wireless standard, support 2.4GHz and 5GHz dual-band operation
  • Support 802.15.1 BLE5.0 wireless standard, the rate is up to 2Mbps
  • Dual-core CPU, 512KB + 64KB total RAM, 2MBFlash
        High-speed KM4 CPU based on Cortex-M4F architecture, 200MHz clock speed, 512KB RAM
        Low-power KM0 CPU based on Cortex-M0, 20MHz frequency, 64KB RAM
  • Support Wi-Fi / BLE to UART data communication interface
  • Support Wi-Fi STA / AP / AP + STA working mode
  • Support Wi-Fi SoftAP SmartAPLink network distribution function
  • Support Wi-Fi WeChat applet distribution function
  • Support Bluetooth SmartBLELink distribution network
  • Support wireless and remote upgrade firmware, provide wireless batch configuration tool
  • Provide SDK development kit to support secondary development
  • Support built-in PCB antenna, external 3 generation IPEX interface or external pad
  • 3.3V single power supply
  • Size: 23.1mm x 32.8mm x 3.5mm, SMT package

Wireless Standard 802.11 a/b/g/n 802.15.1 BLE5.0
Frequency Range WiFi：2.4GHz：802.11 b/g/n 5GHz：802.11 a BLE：2.402GHz ～ 2.480GHz
StorageTemp. -40℃- 125℃
Processor Dual-core CPU： High-speed KM4 CPU based on Cortex-M4F Low-power KM0 CPU based on Cortex-M0
Basic Frequency High-speed KM4 200MHz Low-power KM0 20MHz
Size (mm) 23.1mm x 32.8mm x 3.5mm
Package Type SMT48
Work Voltage 1.76~3.6V
Resource-Flash 2M
Resource-RAM High-speed KM4 200MHz Low-power KM0 20MHz
Interface-UART 2
AP Mode √
STA Mode √
AP+STA Mode √
Web Server √
OTA Upgrade √
Airkiss Configure √
SDK Support √
Work Temp. -20℃- 85℃
User Guide
High Flying Wi-Fi Module Operation Guide_20210222 [ Download Times: 2849,  Date Update: 2021-02-22 18:09:58 ]
HF-LPF100 Wi-Fi_BLE Module Software Function-V1.0(20230322) [ Download Times: 194,  Date Update: 2023-04-03 19:04:10 ]
HF-LPF100 Dual Band Wi-Fi_BLE Module User Manual-V1.2(20220822) [ Download Times: 168,  Date Update: 2023-08-23 17:46:08 ]
HF-LPF100双频Wi-Fi_BLE模块用户手册V1.2(20230822) [ Download Times: 233,  Date Update: 2023-08-23 17:46:52 ]
Application Notes
EVK Evaluation Board Design Data_20210518 [ Download Times: 1454,  Date Update: 2021-05-18 15:21:32 ]
HF-LPX30 Series_HF-LPX70 Series_HF-LPD1X0 Series Module Webpage [ Download Times: 2223,  Date Update: 2023-05-05 16:15:16 ]
