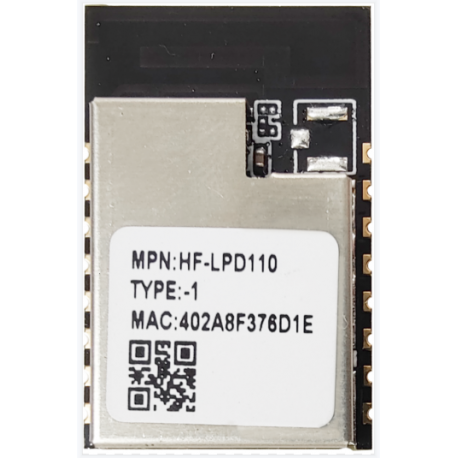

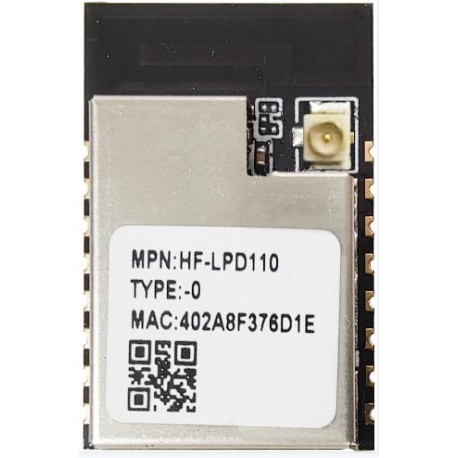

HF-LPD110

  • Product Code: HF-LPD110
Buy Online

Overview of Characteristic

²Support IEEE802.11 a/b/g/n Wireless Standards, work in 2.4GHz and 5GHz dual band

²Based on Andes Core, 160MHz CPU, 192KB RAM, 2MB Flash

²Support UART Data Communication Interface

²Support Work As STA/AP/AP+STA Mode

²Support Sniffer Method SmartLink V8 Config

²Support SoftAP Method SmartAPLink Config

²Support Wireless and Remote Firmware Upgrade Function

²Support Software SDK for Develop

²Support D Internal PCB, External 1st  Generation IPEX

²Single +3.3V Power Supply

²Size: 16±0.3mm x 24±0.3mm x 3.5±0.3mm, SMT16 package

Wireless Standard 2.4GHz：802.11 b/g/n 5GHz：802.11 a
StorageTemp. Storage Temp -40℃- 125℃
Processor Andes Core
Basic Frequency 160MHz
Operating System FreeRTOS
Wi-Fi Standard 802.11 a/b/g/n
I-PEX Connector √
Size (mm) 16±0.3mm x 24±0.3mm x 3.5±0.3mm
Package Type SMT16 package
Work Voltage 3.13~3.46V
Current @No data 44mA
Current @Tx Peak 345mA
Resource-Flash 2M
Resource-RAM 192KB RAM
Interface-UART 1
Interface-PWM 3
Interface-GPIO √
AP Mode √
STA Mode √
AP+STA Mode √
Web Server √
OTA Upgrade √
SDK Support √
Work Temp. -40℃- 85℃
User Guide
High Flying Wi-Fi Module Operation Guide_20200814 [ Download Times: 4534,  Date Update: 2020-11-19 09:52:34 ]
HF-LPD110 Dual Band Wi-Fi Module User Manual-V1.1(20230818) [ Download Times: 115,  Date Update: 2023-08-18 16:05:45 ]
HF-LPD110 双频Wi-Fi模块用户手册V1.1(20230818) [ Download Times: 140,  Date Update: 2023-08-18 16:06:16 ]
HF-LPD1X0 Dual Band Wi-Fi Module Software Function-V1.0(20230818 [ Download Times: 208,  Date Update: 2023-08-18 18:02:55 ]
HF-LPD1X0 双频_模块通用软件功能V1.0(20230818) [ Download Times: 347,  Date Update: 2023-08-18 18:04:02 ]
Application Notes
EVK Evaluation Board Design Data_20180109 [ Download Times: 582,  Date Update: 2021-09-29 18:27:09 ]
HF-LPX30 Series_HF-LPX70 Series_HF-LPD1X0 Series Module Webpage [ Download Times: 1757,  Date Update: 2023-05-05 16:15:16 ]
