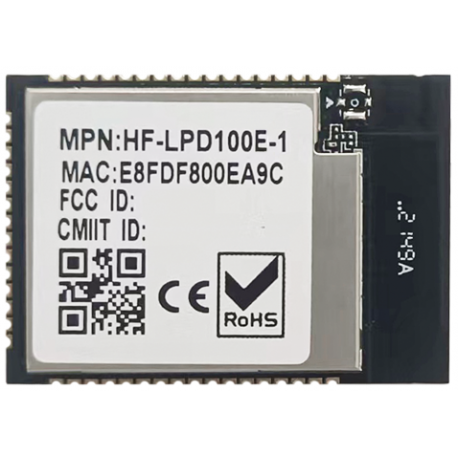

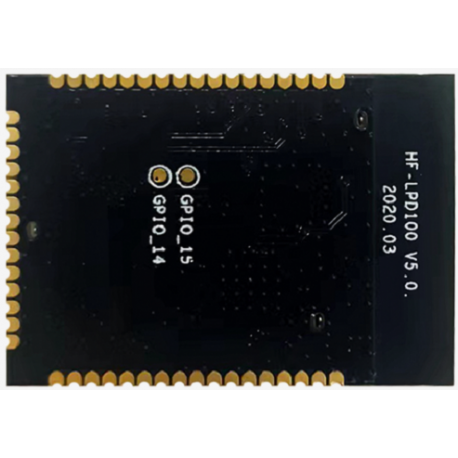

★HF-LPD100E

  • Product Code: HF-LPD100E
Buy Online

Overview of Characteristic

 Support IEEE802.11 a/b/g/n Wireless Standards, work in 2.4GHz and 5GHz dual band

 Based on Andes Core, 160MHz CPU, 192KB RAM, 2MB或8MB Flash

 Support UART Data Communication Interface

 Support Work As STA/AP/AP+STA Mode

 Support Sniffer Method SmartLink V8 Config

 Support SoftAP Method SmartAPLink Config

 Support Wireless and Remote Firmware Upgrade Function

 Support Software SDK for Develop

 Support Different Antenna Option

nHF-LPD100/HF-LPD100E：Internal PCB, External 3rd Generation IPEX or External Antenna Pad

nHF-LPD130/HF-LPD130E：External 1st Generation IPEX

 Single +3.3V Power Supply

 Size:

nHF-LPD100: 23.1±0.3mm x 32.8±0.3mm x 2.5±0.3mm, SMT48 package

nHF-LPD100E: 23.1±0.3mm x 32.8±0.3mm x 3.5±0.3mm, SMT48 package

nHF-LPD130/HF-LPD130E: 22±0.2mm x 14.3±0.2mm x 8mm, DIP10 package


Wireless Standard 2.4GHz：802.11 b/g/n 5GHz：802.11 a
StorageTemp. Storage Temp -40℃- 125℃
Processor Andes Core
Basic Frequency 160MHz
Operating System FreeRTOS
Wi-Fi Standard 802.11 a/b/g/n
I-PEX Connector √
Size (mm) 22 x 14.3 x 8mm
Package Type DIP10 package
Work Voltage 3.13~3.46V
Current @No data 44mA
Current @Tx Peak 345mA
Resource-Flash 2M
Resource-RAM 192KB RAM
Interface-UART 1
Interface-PWM 2
Interface-GPIO √
AP Mode √
STA Mode √
AP+STA Mode √
Web Server √
OTA Upgrade √
SDK Support √
Work Temp. -40℃- 85℃
User Guide
High Flying Wi-Fi Module Operation Guide_20200814 [ Download Times: 5069,  Date Update: 2020-11-19 09:52:34 ]
HF-LPD1X0 Dual Band Wi-Fi Module User Manual-V1.6(20230818) [ Download Times: 401,  Date Update: 2023-08-18 18:01:54 ]
HF-LPD1X0 双频Wi-Fi模块用户手册V1.6(20230818) [ Download Times: 735,  Date Update: 2023-08-18 18:02:21 ]
HF-LPD1X0 Dual Band Wi-Fi Module Software Function-V1.0(20230818 [ Download Times: 297,  Date Update: 2023-08-18 18:02:55 ]
HF-LPD1X0 双频_模块通用软件功能V1.0(20230818) [ Download Times: 526,  Date Update: 2023-08-18 18:04:02 ]
Application Notes
EVK Evaluation Board Design Data_20180109 [ Download Times: 676,  Date Update: 2021-09-29 18:27:09 ]
HF-LPX30 Series_HF-LPX70 Series_HF-LPD1X0 Series Module Webpage [ Download Times: 2223,  Date Update: 2023-05-05 16:15:16 ]
