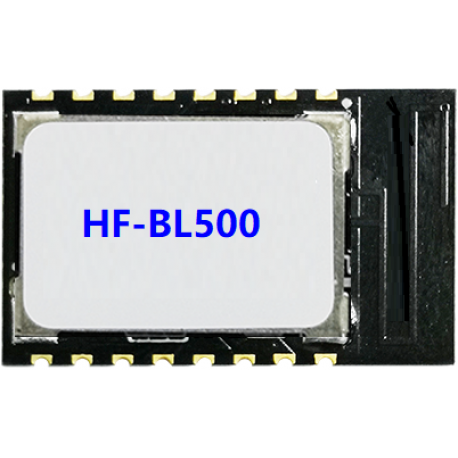

★HF-BL500
- Product Code: HF-BL500
Overview of Characteristic
² Support BLE5.0 Standard. Max 2Mbps Data Rate
² Integrate RISC MCU, 48MHz CPU, 48KB RAM, 512KB Flash
² Support Wireless OTA Upgrade
² UART Transparent Transmit Module
² Support SIG Mesh
² Supper Low Sleep Mode, 6.1uA. Excellence Power Save Scheme Suitable for Battery-Powered Applications
² Support Internal Antenna
² Single 2.5V~4.3V Power Supply
² Size: 22.5mm x 13.5mm x 3mm
Size | 22.5mm x 13.5mm x 3mm |
Wireless Standard | 802.15.1 |
Frequency Range | 2.402GHz~2.480GHz |
Transmit Power | Max=+10 dBm |
Receiver Sensitivity | -93 dBm |
Data Interface | UART PWM ADC |
Operating Voltage | 2.5~4.3V |
Operating Current | 3.2mA |
Deep Sleep Current | 6.1uA |
Operating Temp. | -40℃- 125℃ |
StorageTemp. | -45℃- 125℃ |
