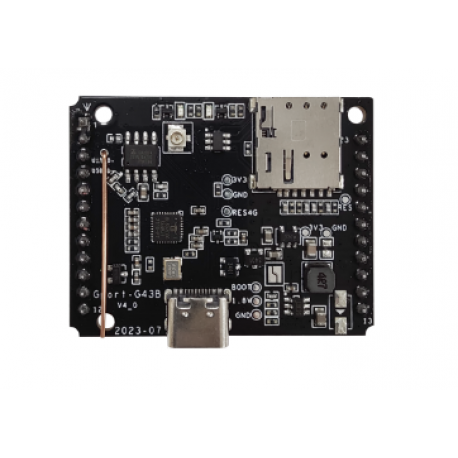

Gport-G43B
- Product Code: Gport-G43B
Overview of Characteristic
Support 4G full Netcom LTE-TDD, LTE-FDD supports China Mobile Unicom Telecom 4G network
Support TTL to4G&BLE Data Transmission, UART baud rate Up to 460800bps
Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support SMS AT Command Configuration
Support Bluetooth configuration parameters and data transparenttransmission
Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of ICCID, IMEI, IMSI, Software Version, GPRS Connection Status.
Support NTP
Support Modbus TCP to Modbus RTU Gport-G43B 4G Module User Manual
Support IOTBridge for Remote Control and Config
Support IOTBridge Working Time Setting, For Example, Only Works From 10:00 to 10:30 to Save the Data Traffic
Support UART, Network OTA Upgrade Firmware
Size: 45 x 32 x 8mm
5～18VDC Wide Power Supply Or 3.6~4.2@2A power in
| Wireless Standard | BLE 5.0 |
| Frequency Range | 2402GHz-2480GHz |
| Transmit Power | Max 15dBm |
| Receiver Sensitivity | -97dBm |
| Basic Frequency | Cortex-M3/96MHz |
| Operating System | FreeRTOS |
| Interface Standard | 3.3V UART TTL |
| Transmit Power | LTE-TDD: Class 3(23dBm+1/-3dB) LTE-FDD: Class 3(23dBm±2dB) |
| Receive Sensitivity | FDD B1: -96dBm(10M) FDD B3: -96dBm(10M) FDD B5: -96dBm(10M) FDD B8: -96.5dBm(10M) TDD B34: -100dBm (10M) TDD B38: -96dBm(10M) TDD B39: -97dBm(10M) TDD B40: -96.5dBm(10M) TDD B41: -96dBm(10M) |
| Port Number | 1 |
| Data Bits | 7，8 |
| Stop Bit | 1，2 |
| Check Bit | None，Even，Odd |
| Baud Rate | 1200 bps~460800 bps |
| Flow Control | No Flow control Hardware RTS/CTS |
| Input Voltage | 5 ~ 18VDC (5V/2A or 9V/1A specification adapter) Or 3.8V@2A DC input |
| Working Current | ~300mA@9V 2A peak current |
| Processor/Frequency | Cortex-M3/96MHz |
| SIM Card | Standard SIM card(1.8V/3V) |
| Size | 45mm x 32mm x 8mm |
| Work Temp. | -40 ~ 85° |
| Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH（no condensation） |
