HF-LPT120A
- Product Code: UART to Wi-Fi [LPT120A]

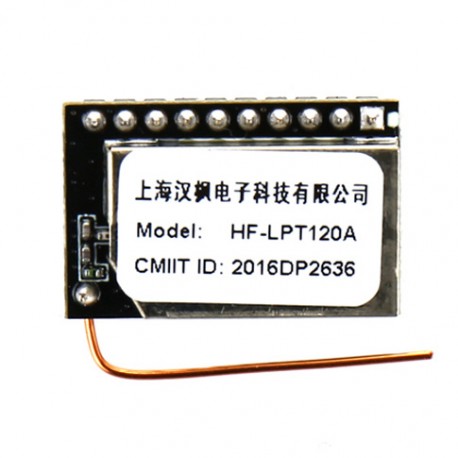

Overview of Characteristic ● Support IEEE802.11b/g/n Wireless Standards ● Based on High-Flying Cost Effective Wi-Fi SOC: MC300 chipset ● Support UART/GPIO Data Communication Interface ● Support Work As STA/AP Mode ● Support Smart Link Function (APP provide) ● Support Wireless and Remote Firmware Upgrade Function ● Support WPS Function ● Support Internal/External Antenna Option ● Single +3.3V Power Supply ● Smallest Size: 22mm x 13.5mm x6mm, 1x10mm 2mm DIP Package
|
HF-LPT120A Base on customer detailed requirement, HF-LPT120A series modules provide different variants and physical type for detailed application. |
Production Data | 2015/Q4 |
Key Feature | Low Power SDK Support SmartLink Config Small Size Strong Signal Strength Lowest Price |
Processor | ARM7 SOC |
Basic Frequency | 96MHz |
Operating System | Contiki |
Wi-Fi Standard | 802.11bgn |
Certification | CE/FCC/SRRC |
Temp. Range | -20~+85 |
Internal Antenna | √ |
Size (mm) | 22x13.5x6 |
Package Type | DIP10 |
Work Voltage | 2.95~3.6V |
Current @No data | ~30mA |
Current @Tx Peak | ~280mA |
Resource-Flash | 2MB |
Resource-RAM | 192KB |
Interface-UART | 2 |
Interface-GPIO | √ (5) |
AP Mode | √(Max 4 STA) |
STA Mode | √ |
Web Server | √ |
OTA Upgrade | √ |
Smart Configure SmartLink V7.X APP | √ |
Airkiss Configure | √ |
SDK Support | √ |
