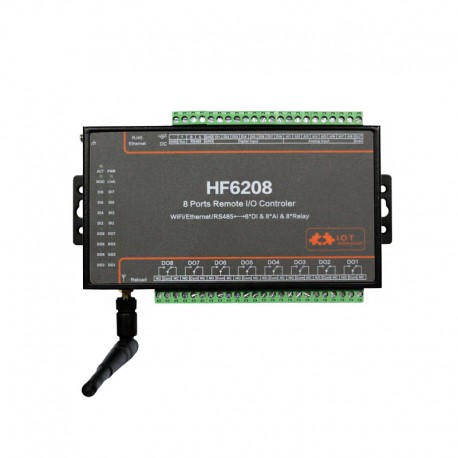

HF6208
- Product Code: HF6208
² Support TCP/IP/Telnet /Modbus TCP Protocol
² Support RS485 transmission Use Modus protocol to control 8 DIs, 8 AI interfaces and control 8 DOsSupport STA/AP/AP+STA Mode
² Support Modbus RTU and Modbus TCP protocol
² Support 10 / 100M Ethernet adaptation (HF6208 / HF6508)
² Support web page, IOTService PC software easy configuration (HF6208 / HF6508)
² Support configuration (HF6108)
² Support Industrial Operating Temperature Support Industrial Operating Temperature: -40 to + 85˚C
² Support web page, PC software IOTService configuration (HF6208 / HF6508)
² Support web OTA wireless upgrade (HF6208 / HF6508)
² DI input voltage range 3 ~ 30V, AI input voltage range 0 ~ 5V, input current range 0 ~ 25mA
² Wide voltage 5 ~ 40V DC power supply
² Cortex-M3 MCU (128KB SRAM) and 2MB Flash
² Size: 95 x 65 x 25 mm
| Wireless Standard | 802.11 b/g/n |
| Frequency Range | 2.412GHz-2.484GHz |
| Operating System | Ecos |
| Network Mode | STA/AP/STA+AP |
| Transmit Power | 802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.) |
| Processor/Frequency | MIPS/320MHZ |
| Port Number | 1RJ45andLED |
| Interface Standard | 10/100M Base-T Auto-negotiation |
| Interface Standard | RS485：5.08mm |
| Data Bits | 8 |
| Baud Rate | 9600bps |
| Configuration | Web XML Telnet IOTService |
| Size | 192mm x 97mm x 26mm |
| Work Temp. | -40 ~ 85°C |
- User Guide
-
IOT_Device_Series_Software_Funtion_20250328
[ Download Times:
51736 , Date Update: 2025-04-03 09:51:01 ] -
HF6208_HF6508 User Manual-V1.2_20250417
[ Download Times:
3980 , Date Update: 2025-04-25 13:26:05 ]
