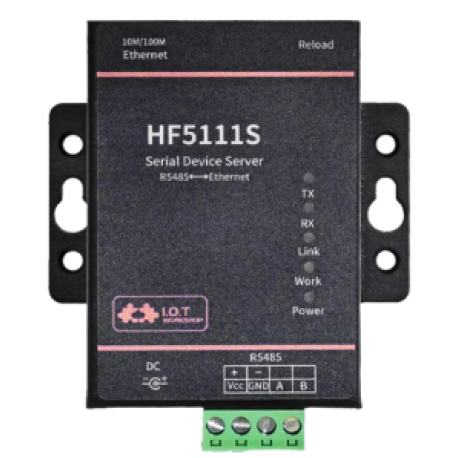

★HF5111S
- Product Code: HF5111S
Overview of Characteristic
- Cortex-M3 MCU with 2MB Flash and 128KB SRAM
- Use FreeRTOS Operation System
- Support TCP/IP/Telnet /Modbus TCP Protocol
- Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps
- Support 10 Ethernet Auto-Negotiation
- Support Easy Configuration Through a Web Interface or PC IOTService Tool
- Support Security Protocol Such As AES/DES3
- Support Web OTA Wirelss Upgrade
- Support Industrial Temperature: -40 to +85˚ C
- Wide DC Input 5~36VDC
- Size: 79 x 65 x 25 mm (L x W x H)
| Processor | Cortex-M3 |
| Basic Frequency | 96MHz |
| Flash | 2MB |
| SDRAM | 128KB |
| Operating System | FreeRTOS |
| Ethernet | 1 |
| Interface Standard | RJ45 |
| Rate | 10/100M |
| Protection | 8KV Isolation |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, uPNP, NTP, Modbus TCP |
| Security Protocol | AES 128Bit DES3 |
| Receive Buffer | 4K |
| Port Number | 1 port(RS485) |
| Interface Standard | RS485：2 wire（A+，B-） |
| Data Bits | 8 |
| Stop Bit | 1 |
| Check Bit | None，Even，Odd，Space，Mark |
| Baud Rate | 600 bps~460800 bps |
| Flow Control | RTS/CTS |
| Buffer | 4K |
| Configuration | Built-in webpage：Http Computer set-up software：IOTManager |
| Virtual Serial | Windows, XP/Vista, 7， 8，10 Server 2003/2008/2012 |
| Size | 79mm x 55mm x 25mm |
| Operating Temp. | -45 ~ 85°C |
| Storage Temp. | -45 ~ 105°C， 5 ~ 95% RH（no condensation） |
| Input Voltage | 5～36VDC |
| Working Current | ~100mA |
| Power | <400mW |
| Warranty | 1 year |
| Accessory | 1* 5V/1A Power Adapter 1* Ethernet Cable |
- User Guide
-
IOT_Device_Series_Software_Funtion_20250328
[ Download Times:
55211 , Date Update: 2025-09-18 14:41:10 ] -
HF5111S User ManualV1.0(20200114)
[ Download Times:
2802 , Date Update: 2020-01-16 14:33:59 ] -
PE1X_EE1X_HF51XX_Eport_Operation Guide_20200402
[ Download Times:
18642 , Date Update: 2025-09-18 14:42:19 ]
