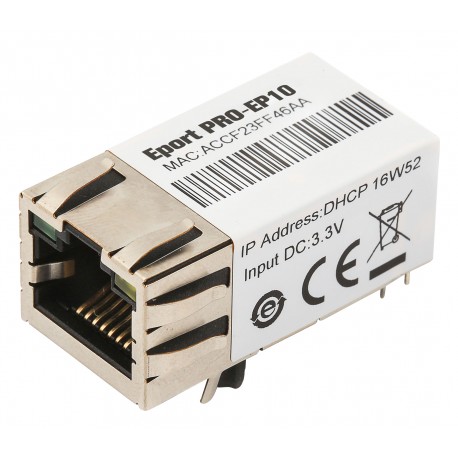

Eport Pro-EP10

  • Product Code: Eport Pro-EP10
Buy Online

Overview of Characteristic

²  MIPS MCU with 16MB Flash and 32MB SRAM

²  Use Linux Operation System

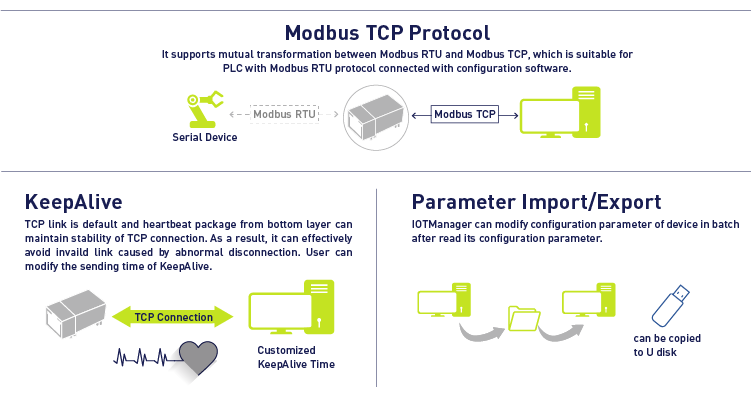

²  Support TCP/IP/Telnet /Modbus TCPProtocol

²  Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps

²  Support 10/100M Ethernet Auto-Negotiation

²  Support Easy ConfigurationThrough a Web Interface

²  Support Security ProtocolSuch AsSSL/AES/DES3

²  Support  Web OTA Wirelss Upgrade

²  Single +3.3V Power Supply

²  Size: 33 x 18.6x 15 mm(L x W x H)

²  FCC/CE/RoHS Certificate













System Information
Processor/Frequency MIPS/320MHz
Flash/SDRAM 16MB/32MB
Operating System Linux
Ethernet
Port Number RJ45 with 2 LED
Interface Standard 10/100M Auto-Sensing
Protection 2KV Isolation
Network Transformer Integrated
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol SSL v3(2048)、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC
IPV6 Support Support
Serial
Port Number 1 + 1 debug
Interface Standard TTL:2 wire(TX,RX)
Data Bits 7,8
Stop Bit 1,2
Check Bit None,Even,Odd,Space,Mark
Baud Rate TTL:600 bps~460800 bps
Flow Control X on/ X off、NONE
Software
Web Pages Http Web Configuration Customization of HTML Web Pages Interactive Web Pages
Log Remote Realtime Log E-mail Alarm
Configuration Embedded web server, CLI, XML,Telnet, SSH
PC Config Tools Support
SDK For Dev. Yes
Basic Parameter
Size Standard GE RJ45
Operating Temp. -25 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Input Voltage 3.3V
Working Current ~200mA
Power <700mW
Certificate CE, FCC, RoHS
Firmware
EP10&EP20&HF5111A&HF5142A-1.40.0_20200423 [ Download Times: 1282,  Date Update: 2020-04-24 09:36:10 ]
User Guide
Eport Pro-EP10 User Manual [ Download Times: 772,  Date Update: 2016-11-25 15:23:30 ]
IOT_Device_Series_Software_Funtion_20200623 [ Download Times: 9353,  Date Update: 2020-06-23 18:28:00 ]
PE1X_EE1X_HF51XX_Eport_Operation Guide_20200402 [ Download Times: 1083,  Date Update: 2020-04-03 18:55:05 ]
Application Notes
Eport Series EVK Design Package [ Download Times: 1302,  Date Update: 2018-07-17 11:35:50 ]
