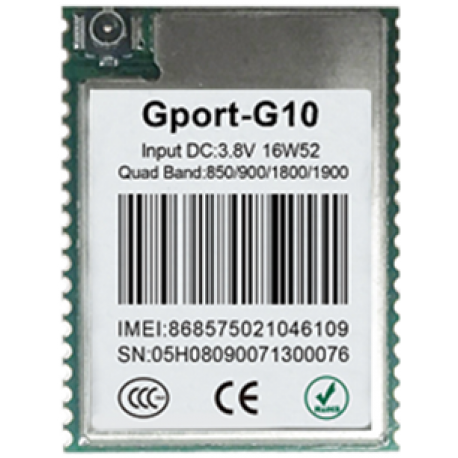

Gport-G10

  • Product Code: G10
Buy Online

Overview of Characteristic

²  Support Four Frequency Bands, Global Standard(850/900/1800/1900MHz)

²  Support GSM/GPRS (No 3G Network) and 2G/3G/4G CMCC or CUCC SIM Card

²  Support Max 3 channel TCP/UDP.

²  Support Multiple Work Mode(Transparent Transmission/AT Commands)

²  Support UART/GPRS Data Interface

²  Size: 25.5 mm x 19.5 mm x  2.5 mm

²  Single 4 DC Power Supply

Internet Type GSM/GPRS
Data Rate 85.6Kbps (DL,UL)
Frequency 850/ 900/1800/1900MHz
Multi-Slot Class GPRS Class 12
Terminal Device Class Class B
Coding Schemes CS1,CS2,CS3,CS4
Max Transmit Power GSM850/GSM900: Class 4(2W) DCS1800/PCS1900: Class 1(1W)
Application AT Command
Network Protocol TCP/UDP
Max Link 5
SIM Card 1.8V/3V
Antenna Interface SMA
Port Interface 2(UART TTL 3.3V)
Data Bits 7,8
Stop Bit 1,2
Charity Bit None,Even,Odd
Baud Rate 600~460800bps
Flow Control No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control
Buffer
Size 25.5 x 19.5 x 2.5 mm
Input Voltage 3.4V~4.2V
Work Current ~300mA
Power GSM 850:82~189mA EGSM 900:83~203mA DCS 1800:78~150mA PCS 1900:78~136mA
Firmware
Gport-G10_G11_G12_Firmware_20190221 [ Download Times: 125,  Date Update: 2019-02-21 17:58:04 ]
User Guide
G10 User Manual [ Download Times: 194,  Date Update: 2018-03-02 15:34:38 ]
4G_2G DTU Products Functions V1.7(20190329) [ Download Times: 249,  Date Update: 2019-04-03 18:13:36 ]
Application Notes
Gport-G10_EVB_20180327 [ Download Times: 129,  Date Update: 2018-03-28 09:40:48 ]
Gport series operation guide_20180420 [ Download Times: 259,  Date Update: 2018-04-20 15:38:16 ]
